16 September 2009



Example of UK Individual Postcodes

Example of UK Individual Postcodes (density)
image source:


According to the Guardian:

"Wikileaks is hosting what it says is a copy of the entire UK postcode list, last updated on July 8 2009, that contains "all 1,841,177 UK post codes together with lattitude [sic] and longitude, grid references, county, district, ward, NHS codes and regions, Ordnance Survey reference, and date of introduction. The database ... is over 100,000 pages in size."

The 230MB file, zipped to 20MB, does indeed contain a huge slew of postcodes in comma-separated form, with those details as headers for each column.

Oh my. We have no idea who has leaked this, but it is the gateway to some valuable information: Royal Mail, as we ascertained previously in the Free Our Data campaign, sells the Postcode Address File (aka PAF) for a considerable sum, and makes a good profit on it: in August 2007 the postal regulator Postcomm revealed that PAF operations made a profit of £1.58m on revenues of £18.36m, all but £4m from resellers."

Data seems to be


"links Postcodes and addresses to geographical data"


so there is a licence cost:

System licence £1,000
Multi-system licence £3,000
Corporate licence £25,000

Full story:


More information on UK Postcodes


If you want a non-derived Royal Mail/Ordnance Survey and Free Postcodes without an annual licence.


Labels: , , , , , ,

14 September 2009

MapQuest Static Maps with POI's (advanced features)

MapQuest Static Maps with POI's (advanced features)

Interesting update from Mapquest API's

De-cluttering Points of Interest [POI] with the static maps api
MapQuest Static API with POI - advanced features - de-clutter
Creating Static Maps with your own POI- this example show how to use the de-clutter option (when points of interest are too close to each other and maintaining a pre-defined zoom level)

This static map is create with the url request


live link tinyurl'ed - http://tinyurl.com/declutter-poi

pois=1,51.044900,-1.3413450, centred locations by latitude/longitude
51,51 (with +/-) is the de-clutter default
(more info on this see http://platform.beta.mapquest.com/staticmap/index.html#advancedoptions

*copying and pasting the long url will work - though for geocoding and other controlled functions require an api key.
API keys are free - they can be created by signing up to Mapquest API via

Mapquest Static Maps API


Labels: , , , , ,

11 September 2009

MapOSMatic - Free Street Map Index Generation

MapOSMatic - Free Street Map Index Generation

**for France only but is hoping to expand in the near future.

Combining the OpenStreetMap mapping platform with Postgres (using PostGIS Functions) for creation of 'Bingo' grid maps with street indexes.

Chavagne Open Street Map - MapOSMaticChavagne Map Index - MapOSMatic
source: http://www.maposmatic.org/smedia/chavagne.png
(large .png's some web browsers can choke on image size being large)

This makes it very useful to print and use on your travels or to help OpenStreetMap fill in any missing or changed names - you can contribute here with over 135,000 budding OSM'ers.
Note: you don't have to have a GPS device to contribute.
Paper and Pencil works! (see http://walking-papers.org/)

How does this work? (techie stuff bit)
  • Renders the map using OpenStreetMap data and the OpenStreetMap Mapnik stylesheet;
  • Renders on top of the map, using Mapnik, the grid of 500 meters squares, the labels of the squares, and a few other informations on the map (copyright, scale, etc.);
  • Greys out all the area outside the city if we find its administrative boundary;
  • Renders an index of the streets, based on OpenStreetMap data and the intersection of the streets with the squares on the map.
"On our server, we run a PostgreSQL server, with the PostGIS extension. In this PostgreSQL server, we have loaded the full OpenStreetMap data for the metropolitan France, using the dumps from Geofabrik and the osm2pgsql tool."

This web service has been called MapOSMatic, like map-o-matic but with a reference to OpenStreetMap (OSM). The web service is written in Python using Django. It is responsible for storing the rendering requests and displaying the result of these requests. The rendering itself takes place asynchronously through the maposmaticd daemon. This daemon does only one rendering at a time, which is very important because of the CPU and I/O intensive nature of the map rendering process.

If you would like to contribute to this project then more information is available:

Mapperz looks forward to it expanding across the rest Europe and the rest of the World.

Labels: , , , , , , ,

09 September 2009

New Canadian Toporama WMS service - Examples

New Canadian Toporama WMS service - Examples


Geospatial provides a little more information on ftp access {bulk downloads} to map data.

new link:
(newer code)

WMS [Web Mapping Service]
is not new - in GIS and Technology terms is old.
But there are plenty of services, organisations, governments out there that do serve their content via this format.

So why this post - Well there was a Google Maps API Thread that was becoming very interesting:
"mentionned last week that canadian topo maps (NRCAN) are of poor quality. This is true. But a new service have been implemented in may by NRCAN to replace it. It seems this introduction passed unnoticed so far. I myself searched for a long time and to find information about this new service. NRCAN has introduced in may the Toporama WMS service. This gives access to the new CANTOPO, the new generation of Topographic Maps (1 :50,000) produced by NRCAN. Theses maps are in vector format. The availability of this new vector format for canadian topo maps gives us more precision and clarity as compared to the old Raster Maps format who where a scan of the Paper Maps. Texts describing rivers and local points of interest do not anymore collapse when zooming to lower levels. The map is also of higher quality at higher zoom level. And
the information shown on the maps is adapted to the zoom levels. "

Then the talented google map api programmer PapaBear picked up on this and quickly developed this:
Canada Vector WMS Maps - Service - Google Map Mashup
the new generation of Topographic Maps from CANTOPO
The quality and content from this dataset is rich in detail, contours, very small lakes, buildings, rail road etc

Though the full credit goes to PapaBear for the example and PierreB for thier knowledge and skills to put this together in a very short space of time.

"This map is of a station (survey marker) very near the border in
Maine. It should open with USGS topo map type. These topos usually
overlap the border and show a short distance into Canada (usually to
the next 7.5 or 15 minutes of longitide, depending on the scale).

The map type is changed with the selector in the upper right. I have
kept the old raster version from NR canada (type "CanRas") as well as
the new vector maps (type "CanVec").

You can compare the USGS topos and the 2 Canadian types for the same
locale. The USGS map tiles are also raster data (and these have been
know to have missing areas and occasional mis-registration) but they
are higher resolution scans than the old NR Canada tiles..

The topography is not too interesting, since it's a swampy area, but
nevertheless the different map type are all visible. "

If you want to see a working example then go to:

{note: this is a testing environment and change be moved or changed without notice}

But hopefully users will be impressed with the resources and hopefully make use of the wms services still out there.

Well done.

Labels: , , , , , , ,

08 September 2009

Ovi SDK - Map Beta Examples - First Look

Ovi SDK - Map Beta Examples - First Look

It is nearly a week since the public release of the Ovi [Nokia] SDK

Mapping Wise what can you do with it?

Ovi Map Example Apps
Well the first version had an issue - apps would not show, but this has been rectified and now the examples will show in the Nokia(N97) Emulator.

This example shows a few options.
Drop Pin
POI Icons
Server Icon (Wifi/3G connection required)
Local (Phone memory in the app)
Polyline (now we are getting somewhere)
Polygons - Reviewed

Map Content Example
Landscape mode enabled - shows all example with out needing to scroll.

Polygon Example

mapperz wasn't happy with the example polygon - it didn't seem that helpful

Ovi Maps Beta Example Polygon Bristol,UK
Custom Polygon generated in Ovi Map Player using the Ovi Apps SDK
(mapperz customised the orginal example with something slightly better)
So how was this achieved?

Well you can study the Development Guide or the API Library that comes zipped up
However the fastest way to learn is working examples

The code was found in mapfunctions.js
(in the Downloaded SDK >com.nokia.maps.examples.mapContent)
in here there is a section of code:

Example – Adding a Polygon to the Map
function addPolygon()
var polygon = {
type: "polygon",
[{latitude: 51.45128846597743, longitude: -2.5956809520721436}, {latitude: 51.45115474591054, longitude: -2.5934386253356934}, {latitude: 51.44976403399727, longitude: -2.5936853885650635}, {latitude: 51.449957933872724, longitude: -2.595916986465454}],
visible: true,
width: 5,
color: {red: 180, blue: 20, green: 0, alpha: 255},
fillColor: {red: 0, blue: 0, green: 0, alpha: 100}
// Set zoom level

// Move map center to a central location between the three points of the polygon:
latitude: 51.45052625634988,
longitude: -2.5947046279907227

// Create a layer:
//var layer = player.map.createLayer({name: "testLayer1"});

// Add the polygon:
var mapObjects1 = layer.addMapObjects(polygon);


all that code for one square polygon? well yes...

Now in real-world terms you need quite a lot of information before you start:
Coordinates for each vertices is required to have
{latitude: 51.45128846597743, longitude: -2.5956809520721436}
easier would be: {lat1:
but it would be simpler to list them in a clockwise order.
or you end up copying and pasting lots of coordinates for quite simple shapes.

**note make sure you use {} 'curly brackets' and not () 'normal brackets' or you will get javascript errors.

There is currently no option for holes in polygons (donut polygons)
What would really help is the ability to overlay KML/GPX files from servers or accessed from the device.

Not sure why zoom extent coordinates are required - would be easier for the extent of the polygon(s) to be used.

Less code makes faster devices (http://www.bewebmaster.com/42.php)
color: {red: 180, blue: 20, green: 0, alpha: 255},
fillColor: {red: 0, blue: 0, green: 0, alpha: 100}

how about:

Was hoping to evaulate the New Ovi Maps Navigiation API though in reading the documentation you get a message:

NOTE: The functionality described here is not yet available.

Would prefer they left it out until it was available - would presume that this requires an api key of sorts - but if wanted it tested and de-bugged in beta you would think it would be.

There is demand for this - many, many mobile devices are geo-aware and can use this but it seems clearer there is going to be a good few months of re-writting code to make this a truely customisatable portable mapping and navigational system.
Mapperz will review when activated.

The SDK has been written by techinical people and it does show. They say you are required some basic knowledge of html & javascript.
Mapperz would say you are required to be at an intermediate level for javascript, html,css and de-bugging.
Note: The Software Aptana 1.5 is required to do serious work in the Ovi Apps SDK.

Nokia have the resources they just need to apply it a little stronger.
Web Documentation would be also helpful - like many other mapping apis available.

So the answer to their blog
"OviSDK+you=Ovi Apps for Everyone"

is no currently and unfortunately (hope this changes)

Action please
Nokia need people with basic programming - to read their documentation and highlight areas of explanation.

Ovi Maps Player API stongest competitor is going to be Google Map API (v3) There are some interesting features coming to it in the coming weeks, stay tuned.

When these teething issues have been ironed out then they will have a competitive product.
There is no indication whether the Navigation API will require a licence.
Currently Nokia Ovi Map users require a daily,weekly,monthly or yearly licence to use Navigational Features, if you make an app with it - does everyone require a seperate licence.
If they do it will be a stumbling block for a promising feature.

Labels: , , , , , , , ,

07 September 2009

ViaMichelin Maps - Speed Camera Data

ViaMichelin Maps - Speed Camera Data

ViaMichelin has had traffic information available across most of Europe for several months now.
Their Blog seems a little dated. So here is a little update.

Via Michelin Oxford UK Traffic Info

Speed camera data is now available as an additional overlay - this data can be useful when overlaying the traffic data. The data for speed cameras is fairly up-to-date (apart from Swindon)
note: mobile 'safety' cameras are not mapped.

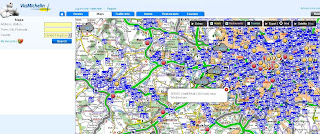

Via Michelin  Speed Camera Info

Other Geo-related (loosly) news:

ViaMichelin GPS Products

Points of Interest:
Hotel and restaurant recommendations from the Michelin Guide, tourist locations from the Michelin Green Guide and thousands of useful and practical addresses throughout Europe

Safety Camera Locations: UK version or European version featuring Austria, Belgium, Czech Republic, France, Italy, Liechtestein, Netherlands, Poland, Portugal, Spain & United Kingdom.

MP3 Player for AudioTours (see below)


ViaMichelin Local (geo-advertising)
Geolocated advertising for the tourism and leisure sector is now available.

ViaMichelin Geo-Tourism
This includes 'Green-Guides' and AudioTours

Labels: , , , , , , , ,

04 September 2009

TopOSM Updates

TopOSM Updates

The 'prettiest' form of Open Street Map has a nice clean update:

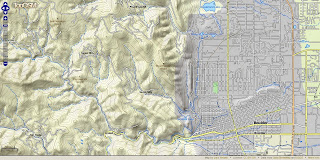

TopOSM Colorado
TopOSM has new coverage - Colorado

Permalink - http://toposm.com/co/?zoom=14&lat=40.0303&lon=-105.30387&layers=B0TT

(Links to the map above)

TopOSM Changes:
  • Released TopOSM Colorado
  • Colour-by-elevation in base layer
  • The hillshading, contour lines and map features are on separate layers. Use the layer switcher (top right "+") to toggle.
Techie talk:
"I created a Python script to generate map legend HTML snippets - complete with images - from mapnik description files and a short description file that specify what features to include. You can see the result at http://toposm.com/ma clicking on the "Show/Hide Legend" at the bottom right. Legends are specific to the current zoom level, so they will refresh when zooming in and out."

"I also added elevation labels for contour lines. The only issue is that the data from MassGIS (where the contours come from) is in meters (3 meter interval) and my map is entirely in ft, so the values look a bit funky sometimes. Not much I can do about that, though..."
Lars Ahlzen

Lots of minor other improvements too. There's a full change log at:

As always, the map is at http://toposm.com/

Full Credit to Lars Ahlzen in this excellent version of Open Street Map
he notes:
"It took longer than I thought, but I've finally released TopOSM (my OSM-based topographic map project) for the state of Colorado."


Previous Posts:

Labels: , , , , , ,

03 September 2009

Ovi Maps News

Ovi Maps News
Nokia have released/updated some Ovi Apps Products

Of Mapping interest there are:

Developers that register for the programme will have access to the following:

  • Ovi Maps Player API – Bringing maps to mobile and web applications effortlessly. The API is powered by NAVTEQ and features more than 180 country maps, location-based search, and detailed place information. Other features include vector-based maps that give a range of views, including: map, terrain and 3D modes for dynamic map mash-ups. The Ovi Maps Player API for the web was introduced earlier this year.
  • Ovi Navigation Player API - Allowing developers to bring Nokia’s industry-leading walk and drive navigation features to their applications, including: pedestrian navigation, turn-by-turn car navigation, and route planning. Developers can deliver applications that get consumers exactly where they want to go.

Ovi Maps Player Example

"Introducing Maps Player - the brand-new, easy-to-use API for Ovi Maps. Maps Player makes it simple to integrate rich Ovi Maps functionality into your website, turning it into a personalised, contextual and compelling experience. "

here is one example

Ovi Maps Player POI

Unlike other Mapping API's available - [Nokia] Ovi Maps Player API gives developers access to their Point's of Interest (currently 3 million) Database.

POI Categories are:



Live Example:

Note: you cannot copy & paste the source code unless you have signed up to Ovi Maps Player API (beta) and have recieved 2 api keys from Nokia for specific domains

** For 3D view an Ovi Map Plugin is required and you will require a restart of you web browser.


More Information Link:


Ovi Navigation API
Ovi Maps Navigation Player API gives you access to the industry-leading Ovi Maps Walk and Drive navigation service, powered by NAVTEQ [Nokia Owned]. With just a few lines of JavaScript, you can add turn-by-turn pedestrian or car navigation to your Ovi apps. You can also add routing to your websites.
Ovi Navigation API
Ovi Navigation API - Drive, Walk & Cycle 'turn-by-turn' directions

Advanced vector maps allow routes matched to the needs of drivers and pedestrians – even when your users are offline.

Developers will be able to use simple, high-level interfaces to leverage turn-by-turn Walk and Drive navigation, with voice guidance in over 20 languages

Users are tired of seeing car routes recycled as "pedestrian". Give them a real Walk experience, with custom map display and enhanced DiscoverCities Navteq data.

Quick links:

Source: @Mapperz

Labels: , , , , , , ,

01 September 2009

Portable GIS v2 Released

Portable GIS v2 Released

"Mobile GIS in your pocket - all you need on one USB Stick - *Portable GIS v2"
*mapperz recommends

Portable GIS v2 Suite

If you want a fully featured GIS suite that works portably from a USB stick in Windows, that can be rapidly deployed and used anywhere in the world, and comes with full setup and support, then this is for you.

Key Advantages:

  • Work remotely in the field, and synchronise your data when you return to the office.
  • Rapidly deploy pre-configured GIS data and software packages.
  • Showcase your work at conferences, seminars and presentations.
  • No licensing issues, no matter how many copies you deploy.

Portable GIS V2 - Control Panel
The new Portbable GIS v2 Control Panel

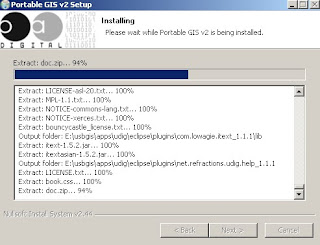

Installing Portable GIS v2 (on USB Stick)
Easy installing - and your be up and running in minutes.

What goes on the USB Stick (2GB stick required)

Included software (with versions)
uDig (1.1.1)
GvSIG (1.1.2)
Quantum GIS (1.02)
PostgreSQL (8.4.01)
PostGIS (1.4.0)
Xampplite: PHP, MySQL, Apache (1.6.2)
Geoserver (1.7.6)
FWTools: ogr, gdal, python, mapserver, openEV (2.4.2)
Tilecache (2.10)
Featureserver (1.12)
PgAdmin III (1.10)
OpenLayers (2.8)

The following utilities are also included:
SqlSync (cross-platform database synchronisation)
GeoMetadataExtractor (extracts metadata from georeferenced images)
Shp2Text (converts shapefiles into csv, with coordinate columns)
Ogr2Gui (GUI for OGR toolkit)
ShapeChecker (Checks and fixes corrupt shape files)

Desktop Modules - Portable GIS
Control Panel give users fast access to Setting Up, Desktop and Web Modules

Full Credit to archaeogeek who has made this make GIS much more portable and easier to use for all levels of GIS knowledge. Well done and many thanks.


additonal links:

Labels: , , , , , , ,
