19 November 2007

ESRI ArcGIS 9.2 - Tips and Tricks (Updated)

updated 16/11/2007
So ArcGIS 9.2 and with Service Pack 4 installed.
and still going slow?

Here is Mapperz ArcGIS Tips and Tricks to get you more productive without the caffeine.

Okay Please note not supported by Mapperz but these methods 'help' ArcGIS run faster and give extra memory allocation.

You will have to log on your system as an administrator to make these tweaks

Before ArcGIS the Operating System should be tuned for ArcGIS.

Based on Windows XP Pro Starting Point

Make XP Run for ARCGIS better

RAM, Virtual Memory, Pagefile and all that stuff
http://support.microsoft.com/kb/555223

How to set performance options in Windows XP
http://support.microsoft.com/kb/308417/

Edit the Boot.ini My Computer>Properties>Advanced>Start Up and Recovery>Edit (Boot.ini)

/MAXRAM

If using an AMD Processor switch off 'Data Execution Protection'
* A common problem this is left on and some ArcGIS code is detected as 'bad' code therefore arcgis install will roll back
and unistall.

NOEXECUTE=ALWAYSOFF


http://www.microsoft.com/technet/sysinternals/
information/bootini.mspx

How to configure SQL Server to use more than 2 GB of physical memory
http://support.microsoft.com/kb/274750
SQL Server 2GB

Increases the size of the user process address space from 2 GB to 3 GB
(and therefore reduces the size of system space from 2 GB to 1 GB).
Giving virtual-memory
intensive applications such as database servers a larger address space can improve their performance

/3GB

so boot.ini looks like this

[boot loader]
timeout=30
default=multi(0)disk(0)rdisk(0)partition(2)\WINDOWS
[operating systems]
multi(0)disk(0)rdisk(0)partition(2)\WINDOWS="Microsoft Windows XP Professional" /noexecute=AlwaysOff /MAXMEM /3GB /fastdetect

Now install ArcGIS 9.2 with the service pack 4
(you can make these changes after you have installed ArcGIS)

Got Floating licenses?
If so and you want to share Arc/Info licenses but allow the user to use ArcGIS you can add ArcView single license to the Desktop Administrator.

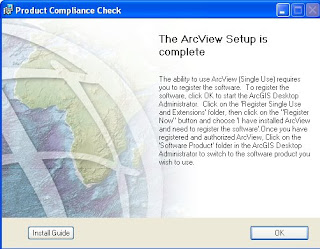

It is very simple to do this. Just add the ArcView DVD to the DVD and got to install it. It will detect that ArcInfo is already installed and adds a component into desktop administrator.

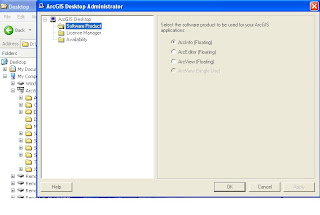

Arc Desktop 9.2 Administrator

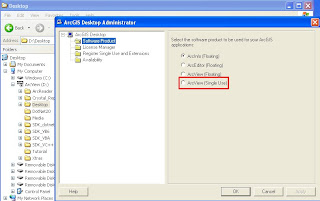

Arc Desktop 9.2 Administrator
Arc Desktop 9.2 Administrator

ArcGIS Improvements

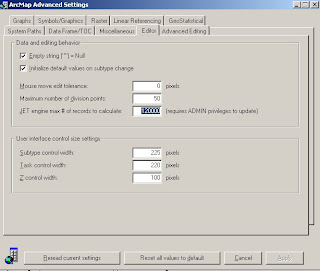

C:\arcgis\Utilities\AdvancedArcMapSettings.exe
Change
Jet Engine to 120000 from the default 9600
This allows more records to be written from memory to shapefile/geodatabase


Printing Large Plots? (over 40 inches)
http://support.esri.com/index.cfm?fa=knowledgebase.
techarticles.articleShow&d=30516

Resizing from 42 inches to 60 inches
arcview\arcpress\etc directory
arcexe9x\etc\device1.dat file
To make the RTL drivers print wider than 36":
in the four lines beginning with 'RTL', change '10350' to '12150' to print 42" wide
'14550' to print 50" wide
and '17550' to print 60" wide

Finally got a PC with or over 2GB of RAM?
make the page file size bigger

Using RegEdit (Only do this if you know what it is)

HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\
SessionManager\MemoryManagement

c:\pagefile1\pagefile.sys 3000 4000
c:\pagefile2\pagefile.sys 3000 4000
c:\pagefile3\Pagefile.sys 3000 4000

Source:
Overcoming the 4,095 MB paging file size limit in Windows
http://support.microsoft.com/kb/237740


and a last tip is those pesky *.aux files that ArcGIS creates for raster display - delete them by a dos batch file and apply it to your start up (aux_delete.bat)

ECHO OFF
ECHO .
ECHO .
ECHO .
ECHO ***************************************
ECHO * *
ECHO * DELETING TEMPORARY AUX FILES... *
ECHO * *
ECHO ***************************************
ECHO .
ECHO .
ECHO ON
cd c:\data
cd d:\data
del *.aux /s
exit

*change c:\data & cd d:\data to your own raster locations

that should make ArcGIS go a little faster.

This post is a result of user experience and Microsoft Pages and ESRI Support.
Use at your own risk.

Use the ESRI Web Based Help - this is more up-to-date than the Installed version.
